316L Stainless Steel Materials LED Flood Resistant To Corrosion By Seawater Work On The Ship
The Light specious design work on the boat,deck,dock,ship,vessel.The light with 316L stianless steel material housing never rust and resitant to corrosion by the seawater.The light reach IP68 Waterproof rating but also can work out of the water since it cool by the heatsink.
Features
1. 316L stianless steel material housing never rust and resitant to corrosion by the seawater
2. Cooling by heatsink.
3. High transparency and thick tempered glass, low light loss,high illuminance and anti-pressure.
4. CREE LED chip, high stability, long life-span.
5. High light transparency & high uniformity lens.
6, Power on/off or switch/DMX512/Wifi control are available.
7, Simple&neat wiring, make the installation and maintenance more fast and easy.
8. IP68 Waterproof.
Specification
| Model No.: MS-UW-RGB-A18 |
| Max.Power | 18W |
| LED Drive Current | 350mA |
| Environment Humidity | 0～85%RH |
| Storage Temp. | -40°～+80° |
| Operating Temp. | -25℃～ +50℃(-13°F ～ +122°F) |
| Dimension | ￠124mmxH84mm |
| Weight | 1.6Kg |
| Material | 316 stainless steel & tempered glass |
| Housing Color | silver white |
| IP Grade | IP68 |
| LED Brand | CREE XPE |
| LED Unit Power | 3W |
| LED Quantity | 18pcs LEDs |
| Light Source | 6R6G6B/18R/18G/18B/18W |
| Lens Angle | 25°/ 40°/ 60°/ 80°/100° |
| Life Time | 50,000 hrs |
| Control Mode | DMX/WiFi/on-off |
| Niche | PVC embedded sleeve/SS304 tripod |
2D Drawings
Control Mode
RGB/RGBW Light Control By DMX Controller
The RGB light or RGBW light need to be connectd with the external RGB DMX decoder DCD9 or RGBW DMX decoder DCD8 first. The DCD9 decoder carry 3xRGB lights(9chs), DCD8 carry 2XRGBW lights(8chs). Also, it is able to be used as a dimmer to adjust the light brightness as per the environment demand. The DMX controller connect with DMX decoder, the DMX decoder connect with the lights,all the DMX decoder connect together to set up the complete system. The light will be set the address by the decoder. The DMX decoder have the internal programme to run the color changing,it also is a DMX controller.
White Light Control By Power On/Off
It's a very simple connection between the switch power supply and LED underwater light. It is mainly used for showing the mono-color based on the static & constant working status.

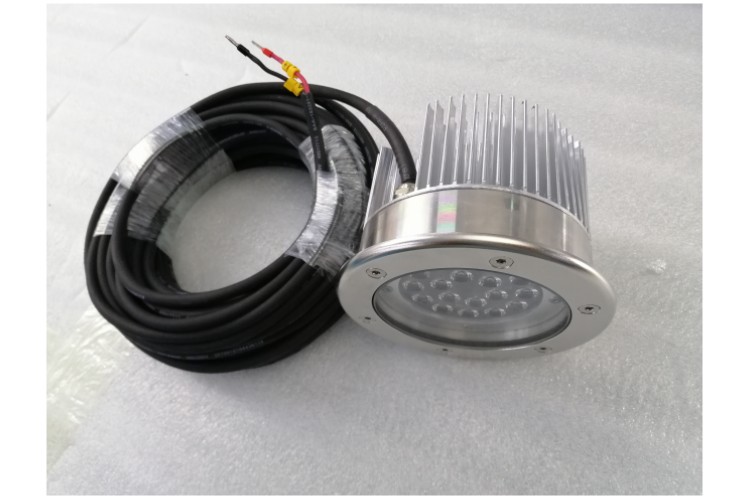

Product Photo
Advantages
1. Long lifespan >50,000 hours.
2. Low working voltage, safe for humen.
3. Green Light, no mercury, environmental protection.
4. Energy saving, low power consumption, high efficiency.
5. CE and RoHS approved.
6. A complete solution could be offered according to your project.
7. Customized design are welcome.
Application
On the boat,deck,dock,ship,vessel.
